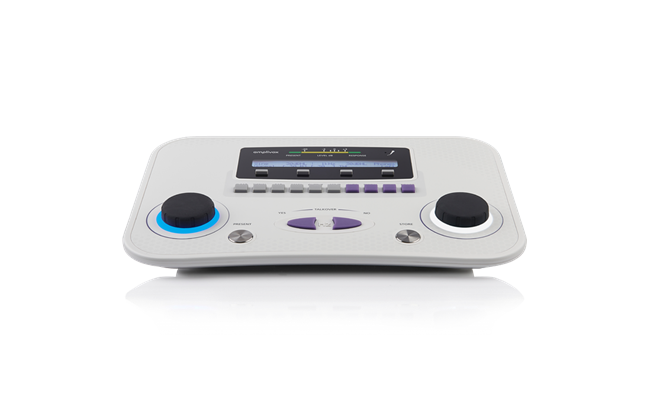

Model 270+
Advanced two-channel diagnostic audiometer
A powerful two-channel diagnostic audiometer with enhanced technology for a more accurate and efficient testing experience. All measurements required for hearing testing are included, as well as enhanced tests, making it the perfect choice for audiologists, ENTs and hearing aid suppliers within audiology.
Clinical measurement options
With recorded and live speech testing, the SRT and SDT scored can easily be defined at the most comfortable threshold level (MCL) for faster hearing aid fitting. The Model 270+ also includes key clinical tests required for the diagnosis of hearing issues such as cochlear and retrocochlear hearing loss (e.g. SISI, Tone Decay, ABLB). Additional counselling tools such as Hearing Level Simulator (HLS) and Master Hearing Aid (MHA) enable the operator to provide class-leading patient care.
key features
- Two-channel audiometer
- Tone audiometry (AC, BC, pure tone, warble tone, pulsed tone)
- Narrowband and speech weighted masking
- Automatic AC and BC testing including automatic masking
- Speech audiometry (recorded and live)
- Masking assistant
- Free field functionality
- Special tests: ABLB, Stenger, SISI, Tone decay, HLS, MHA
- Amplisuite software and Noah modules included
Supportive
This portable audiometer features all the requirements expected within both screening and diagnostic audiometry. Both manual and automatic (Hughson Westlake and Békésy) testing are available for air and bone conduction, along with helpful tools to assist so that you can determine hearing loss issues quickly and efficiently.
The Model 270+ audiometer has been designed to be ready to test with everything you require in the all-in-one application. Learn the basic operations of the Model 270+ in less than five minutes:
Data Management
With the inclusion of an internal memory function, test results can be printed immediately or saved for future processing using the supplied Amplisuite software. Amplisuite allows for easy results download for processing and management with useful counselling tools such as spectum/banana.
The audiometer also offers single-click integration to third-party Electronic Medical Record (EMR) systems such as Noah and OtoAccess® enabling the seamless transfer of results and data, for exceptional workflow efficiency.
Ergonomic Design
With a carefully considered layout, including premium-quality rotary controls, silent touch buttons, and illuminated light ring indicators representing the selected ear, the Model 270+ allows a constant overview of the test position whilst ensuring optimal hand placement.
With a logical six key (left-to-right) process to define test routines, this intuitive instrument guides operators through time saving test protocols to test accurately, making it ideal for those new to testing, as well as seasoned professionals.
Included
- Standard audiometric headset
- Bone conduction headset
- Patient response switch
- Power supply with country adaptors
- Audiogram cards (50)
- Carry case
- USB cable (PC connection)
- USB stick (manuals and Amplisuite software)
- Noah audiometry module
Optional
- Amplivox Audiocups (noise-reducing enclosures)
- Masking earpiece
- Insert earphones
- Thermal printer
- Booth leads
- OtoAccess® database
- Patient microphone
- Loudspeakers
- Monitor headset and microphone
- MP3 player with wordlists
- USB portable power bank (external)
Consumables
High-quality bespoke consumables and accessories to support patient testing programmes, reduce the risk of infection and optimise the performance and reliability of equipment.
Specifications
Frequency range: 125 – 8000Hz
Attenuation range: -10 – 120 dBHL
Transducer: DD45. Second calibrated headset may be added including IP30 or TDH39 earphones
CPT codes
92552: Pure tone audiometry (threshold); air only
92553: Pure tone audiometry (threshold); air and bone
92557: Comprehensive audiometry threshold evaluation and speech recognition
92562: Loudness balance test, alternate binaural or monaural
92563: Tone decay test
92565: Stenger test, pure tone
92579: Visual reinforcement audiometry (VRA)
92582: Conditioning play audiometry
Standards
Audiometer Type 3BE/Type 2
IEC 60601-1
IEC 60601-1-2
IEC 60645-1/ANSI S3.6
Three-year warranty as standard. Please note: product availability may differ depending on country regulation and registration. For further information please contact us.
